Kafka Connect

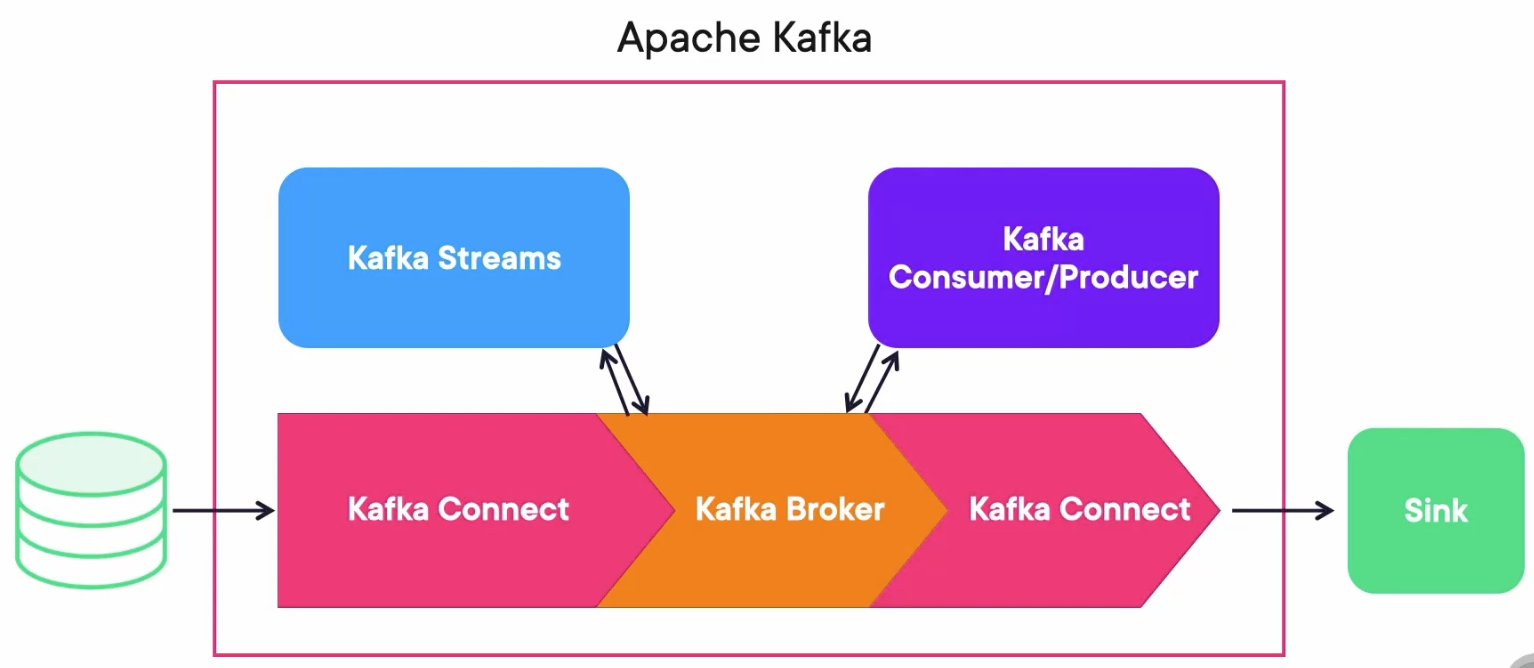

ETL with Apache Kafka

One important statement is that Kafka Connect is not an ETL(Extract, Load, Transform) solution itself, it only connects.

But with the help of the correct plugins it can have some ETL capabilities.

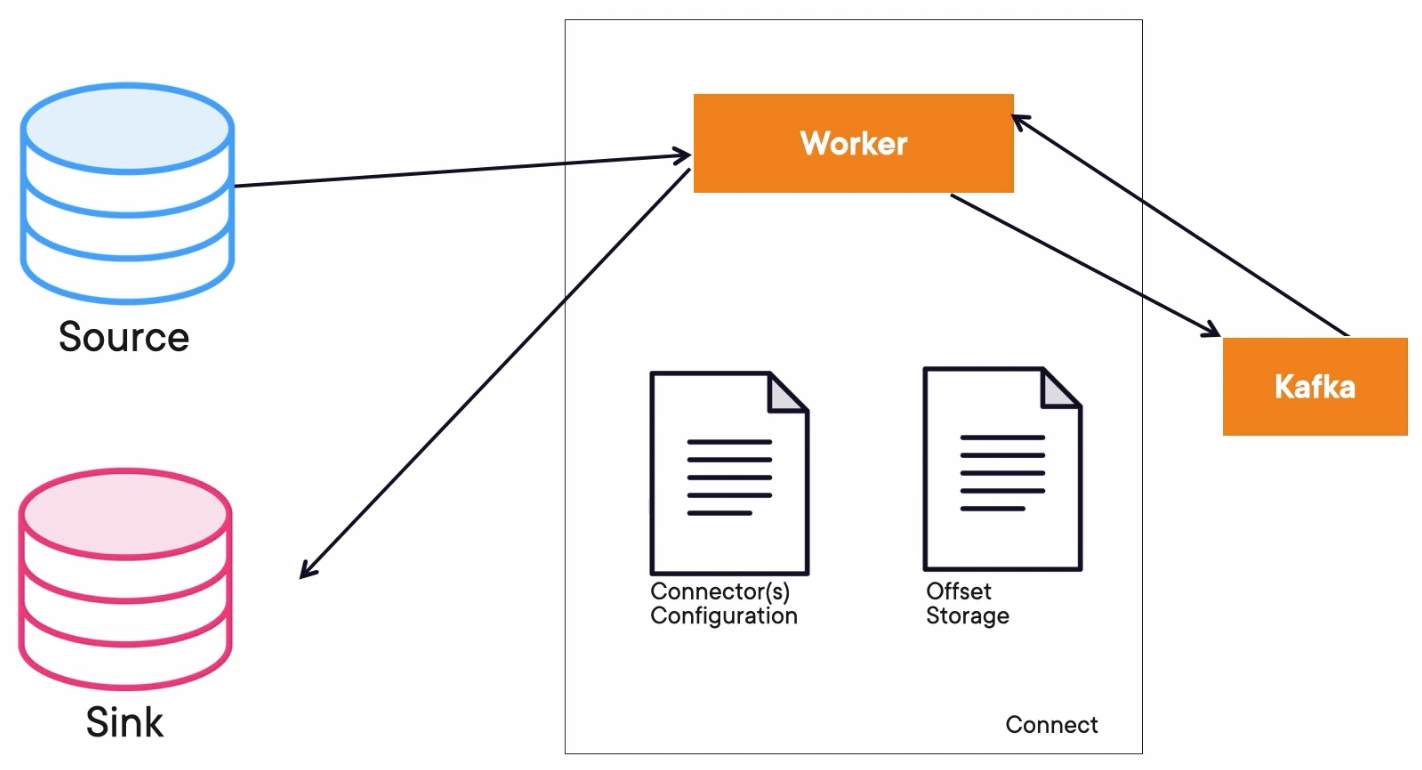

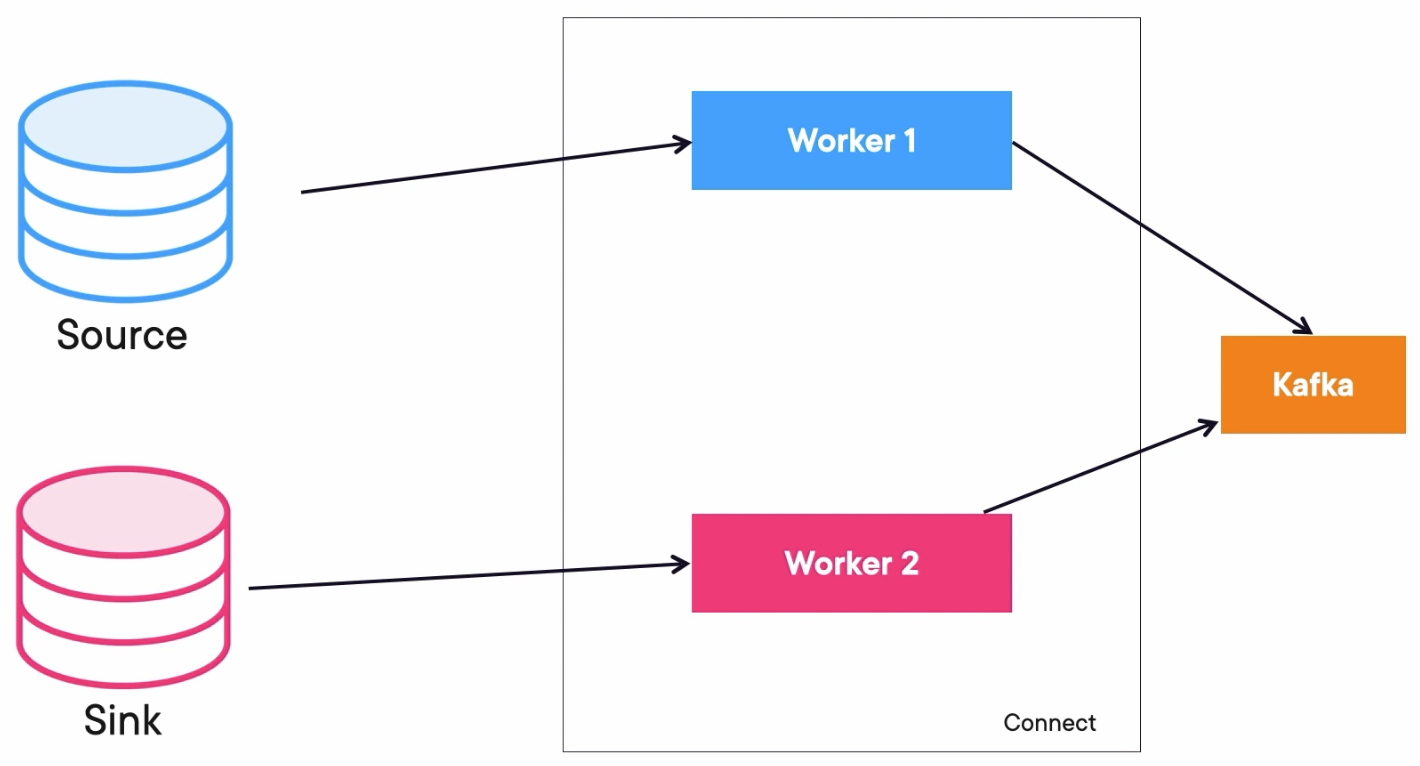

Connectors

Source Connectors: Transfer data from a Source to Kafka.
Sink Connectors: Transfer data from Kafka to a Sink.

You can search through all of the connectors at thre registry: https://www.confluent.io/product/connectors.

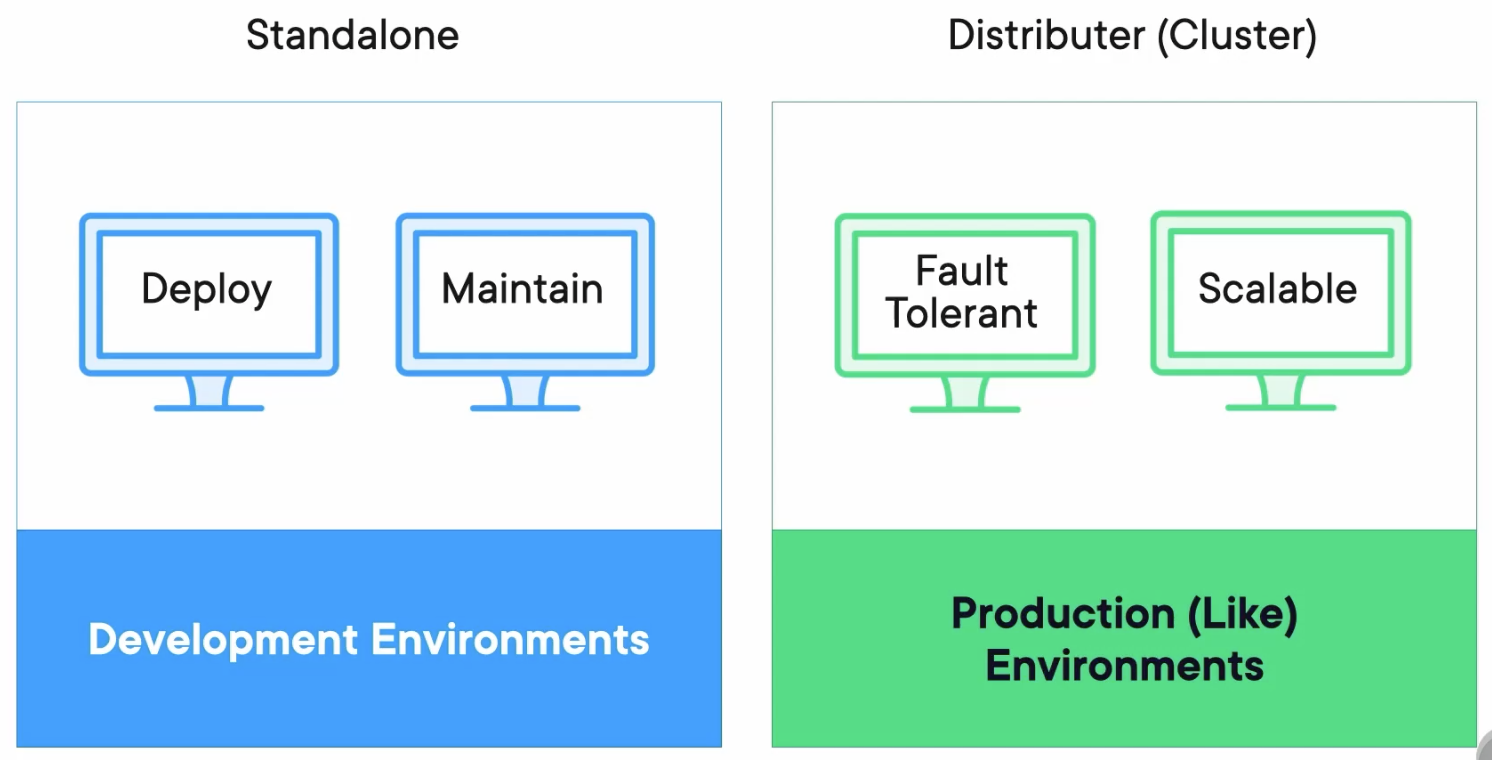

Standalone vs. Distributed

Standalone

The connector configurations will be files. The worker will be just one script that we run.

Distributed

We will have more worker instances. The configurations instead of files will be offset and information in topics inside of Kafka. Kafka Connect in distributed mode offers a RESTful API to deploy a configuration.

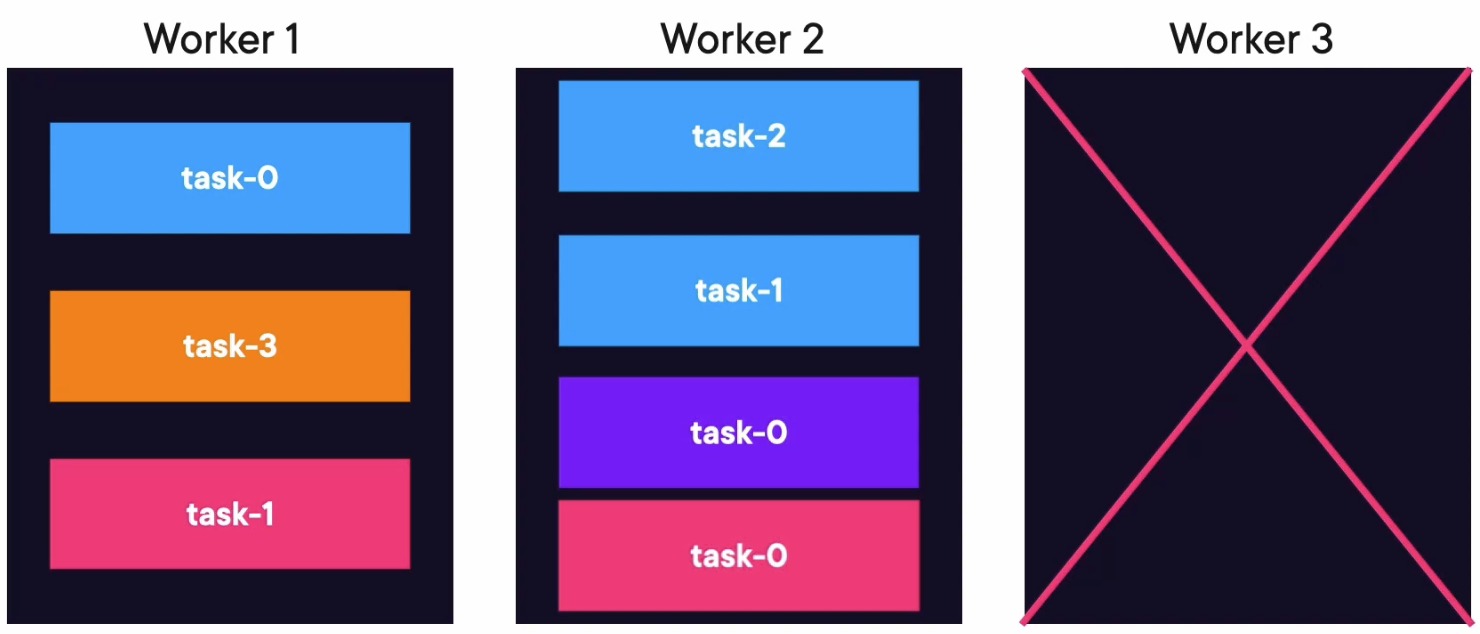

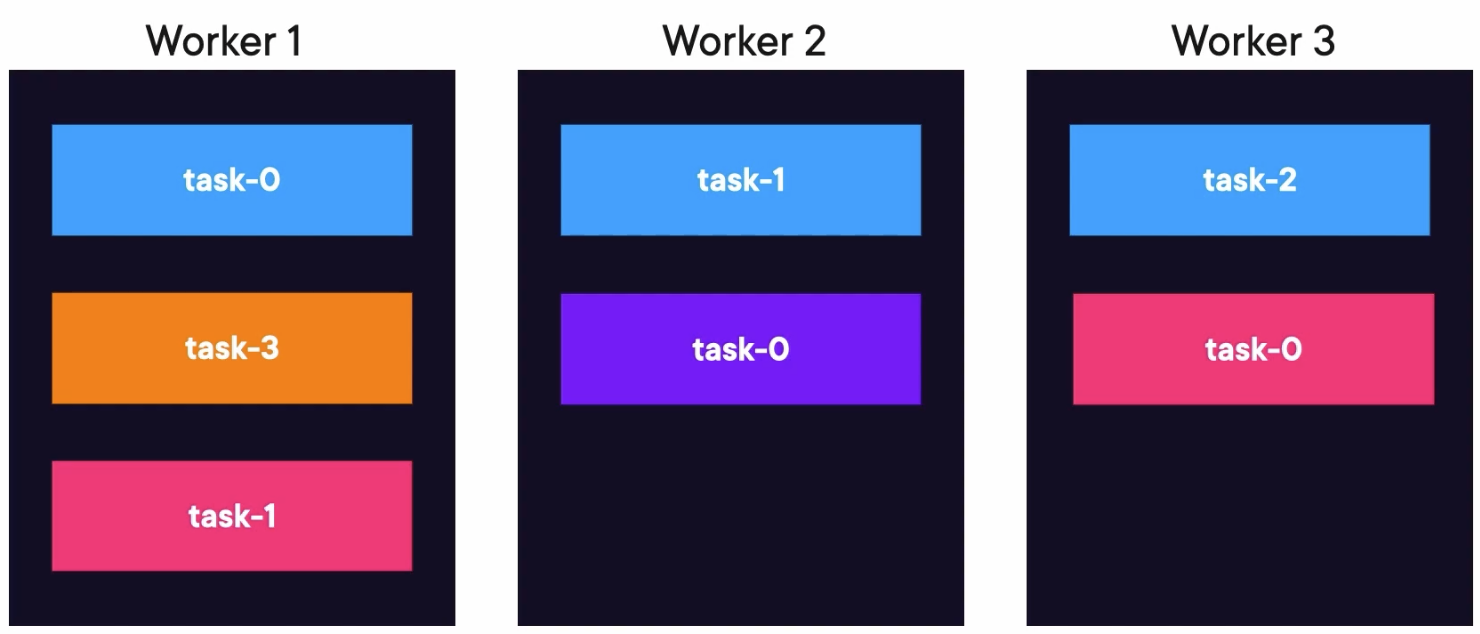

Tasks Rebalancing

If worker 3 fails, the tasks will be moved to a living worker.

When worker 3 is alive again, the tasks rebalance again to the original worker.

Demo: Using the File Connector in a Standalone Mode

Create a docker-compose file docker-compose.yaml containing three Zookeepers, three Kafka Brokers, a Kafka REST Proxy, and a Schema Registry:

---
version: '3'
services:
  zookeeper-1:
    image: confluentinc/cp-zookeeper:7.4.1
    hostname: zookeeper-1
    container_name: zookeeper-1
    volumes:
      - ./zookeeper-1_data:/var/lib/zookeeper/data
      - ./zookeeper-1_log:/var/lib/zookeeper/log
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000
      ZOO_MY_ID: 1
      ZOO_SERVERS: server.1=zookeeper-1:2888:3888;2181 server.2=zookeeper-2:2888:3888;2181 server.3=zookeeper-3:2888:3888;2181

  zookeeper-2:
    image: confluentinc/cp-zookeeper:7.4.1
    hostname: zookeeper-2
    container_name: zookeeper-2
    volumes:
      - ./zookeeper-2_data:/var/lib/zookeeper/data
      - ./zookeeper-2_log:/var/lib/zookeeper/log
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000
      ZOO_MY_ID: 2
      ZOO_SERVERS: server.1=zookeeper-1:2888:3888;2181 server.2=zookeeper-2:2888:3888;2181 server.3=zookeeper-3:2888:3888;2181

  zookeeper-3:
    image: confluentinc/cp-zookeeper:7.4.1
    hostname: zookeeper-3
    container_name: zookeeper-3
    volumes:
      - ./zookeeper-3_data:/var/lib/zookeeper/data
      - ./zookeeper-3_log:/var/lib/zookeeper/log
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000
      ZOO_MY_ID: 3
      ZOO_SERVERS: server.1=zookeeper-1:2888:3888;2181 server.2=zookeeper-2:2888:3888;2181 server.3=zookeeper-3:2888:3888;2181


  broker-1:
    image: confluentinc/cp-kafka:7.4.1
    hostname: broker-1
    container_name: broker-1
    volumes:
      - ./broker-1-data:/var/lib/kafka/data
    depends_on:
      - zookeeper-1
      - zookeeper-2
      - zookeeper-3
    ports:
      - 9092:9092
      - 29092:29092
    environment:
      KAFKA_BROKER_ID: 1
      KAFKA_ZOOKEEPER_CONNECT: zookeeper-1:2181
      KAFKA_ADVERTISED_LISTENERS: HOST://localhost:9092,INTERNAL://broker-1:29092
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: HOST:PLAINTEXT,INTERNAL:PLAINTEXT
      KAFKA_INTER_BROKER_LISTENER_NAME: INTERNAL
      KAFKA_SNAPSHOT_TRUST_EMPTY: true

  broker-2:
    image: confluentinc/cp-kafka:7.4.1
    hostname: broker-2
    container_name: broker-2
    volumes:
      - ./broker-2-data:/var/lib/kafka/data
    depends_on:
      - zookeeper-1
      - zookeeper-2
      - zookeeper-3
      - broker-1
    ports:
      - 9093:9093
      - 29093:29093
    environment:
      KAFKA_BROKER_ID: 2
      KAFKA_ZOOKEEPER_CONNECT: zookeeper-1:2181
      KAFKA_ADVERTISED_LISTENERS: HOST://localhost:9093,INTERNAL://broker-2:29093
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: HOST:PLAINTEXT,INTERNAL:PLAINTEXT
      KAFKA_INTER_BROKER_LISTENER_NAME: INTERNAL
      KAFKA_SNAPSHOT_TRUST_EMPTY: true

  broker-3:
    image: confluentinc/cp-kafka:7.4.1
    hostname: broker-3
    container_name: broker-3
    volumes:
      - ./broker-3-data:/var/lib/kafka/data
    depends_on:
      - zookeeper-1
      - zookeeper-2
      - zookeeper-3
      - broker-1
      - broker-2
    ports:
      - 9094:9094
      - 29094:29094
    environment:
      KAFKA_BROKER_ID: 3
      KAFKA_ZOOKEEPER_CONNECT: zookeeper-1:2181
      KAFKA_ADVERTISED_LISTENERS: HOST://localhost:9094,INTERNAL://broker-3:29094
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: HOST:PLAINTEXT,INTERNAL:PLAINTEXT
      KAFKA_INTER_BROKER_LISTENER_NAME: INTERNAL
      KAFKA_SNAPSHOT_TRUST_EMPTY: true


  rest-proxy:
    image: confluentinc/cp-kafka-rest:7.4.1
    ports:
      - "8082:8082"
    depends_on:
      - zookeeper-1
      - zookeeper-2
      - zookeeper-3
      - broker-1
      - broker-2
      - broker-3
    hostname: rest-proxy
    container_name: rest-proxy
    environment:
      KAFKA_REST_HOST_NAME: rest-proxy
      KAFKA_REST_BOOTSTRAP_SERVERS: 'broker-1:29092,broker-2:29093,broker-3:29094'
      KAFKA_REST_LISTENERS: "http://0.0.0.0:8082"

  schema-registry:
    image: confluentinc/cp-schema-registry:7.4.1
    hostname: schema-registry
    container_name: schema-registry
    depends_on:
      - rest-proxy
    ports:
      - "8081:8081"
    environment:
      SCHEMA_REGISTRY_HOST_NAME: schema-registry
      SCHEMA_REGISTRY_KAFKASTORE_BOOTSTRAP_SERVERS: 'broker-1:29092,broker-2:29093,broker-3:29094'

Run composed containers:

docker compose up -d

Create Topic

Create a topic connect-log with partitions 4:

kafka-topics.sh --create --bootstrap-server localhost:9092 --partitions 4 --topic connect-log

Create a Worker Properties File

Create a worker.properties file at the root of the project. You should change the plugin.path with your absolute path of Kafka libs. Then, set the schema.registry.url to your schema-registryurl, which is configured in thedocker-compose.yaml`.

#worker.properties
bootstrap.servers=http://localhost:9092,http://localhost:9093,http://localhost:9094

# The converters specify the format of data in Kafka and how to translate it into Connect data. Every Connect user will
# need to configure these based on the format they want their data in when loaded from or stored into Kafka
key.converter=org.apache.kafka.connect.storage.StringConverter
value.converter=org.apache.kafka.connect.storage.StringConverter

# The internal converter used for offsets and config data is configurable and must be specified, but most users will
# always want to use the built-in default. Offset and config data is never visible outside of Copcyat in this format.
internal.key.converter=org.apache.kafka.connect.json.JsonConverter
internal.value.converter=org.apache.kafka.connect.json.JsonConverter
internal.key.converter.schemas.enable=true
internal.value.converter.schemas.enable=true

offset.storage.file.filename=/tmp/connect.offsets

# Flush much faster than normal, which is useful for testing/debugging
offset.flush.interval.ms=5000

# Reload metadata faster too so consumer picks up new topics
consumer.metadata.max.age.ms=10000
plugin.path=/Users/zjxjwxk/Library/kafka_2.13-3.9.0/libs
schema.registry.url=http://localhost:8081
rest.port=8083
group.id=1
config.storage.topic=kafka_connect_configs
cleanup.policy=compact
offset.storage.topic=kafka_connect_offsets
status.storage.topic=kafka_connect_statuses

Create a Sink Properties File

Create a filesink.properties file at the root of the project. We can set the number of tasks by tasks.max, set the path of the file by file, and set the topic we are listening to.

#my-file-sink.properties config file
name=local-file-sink
connector.class=FileStreamSink
tasks.max=1
file=./file-log.txt
topics=connectlog

Start the Kafka Connect in Standalone Mode

Start a worker with a standalone instance. Set the parameters for the worker property file and the filesink property file.

connect-standalone.sh worker.properties filesink.properties

Run a Kafka Producer

Create a Java file to run the Kafka Producer sending messages to the topic connectlog:

package com.globomantics;

import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerConfig;
import org.apache.kafka.clients.producer.ProducerRecord;
import org.apache.kafka.common.serialization.DoubleSerializer;
import org.apache.kafka.common.serialization.IntegerSerializer;
import org.apache.kafka.common.serialization.StringSerializer;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.util.Properties;

public class LogProducer {
	private static final Logger log = LoggerFactory.getLogger(LogProducer.class);
	private static final String TOPIC = "connectlog";

	public static void main(String[] args) throws InterruptedException {

		Properties props = new Properties();
		props.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "http://localhost:9092,http://localhost:9093,http://localhost:9094");
		props.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, DoubleSerializer.class.getName());
		props.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());
		KafkaProducer<Double, String> producer = new KafkaProducer<>(props);
		for (int i = 0; i < 25000; i++) {
			double key = Math.floor(Math.random()*(50));
			String value = "Some logging info from Kafka with key" + key;
			ProducerRecord<Double, String> producerRecord =
					new ProducerRecord<>(TOPIC, key, value);

			log.info("Sending message " + value + " to Kafka");

			producer.send(producerRecord, (metadata, e) -> {
				if (metadata != null) {
					System.out.println(producerRecord.key());
					System.out.println(producerRecord.value());
					System.out.println(metadata.toString());
				}
			});
			Thread.sleep(1000);
		}
		producer.flush();
		producer.close();

		log.info("Successfully produced messages to " + TOPIC + " topic");

	}
}

Check the Log File

We can check the log file which is configured in the Sink Properties File:

❯ cat file-log.txt
Some logging info from Kafka with key29.0
Some logging info from Kafka with key49.0
Some logging info from Kafka with key26.0
Some logging info from Kafka with key12.0
Some logging info from Kafka with key12.0
Some logging info from Kafka with key1.0
Some logging info from Kafka with key16.0

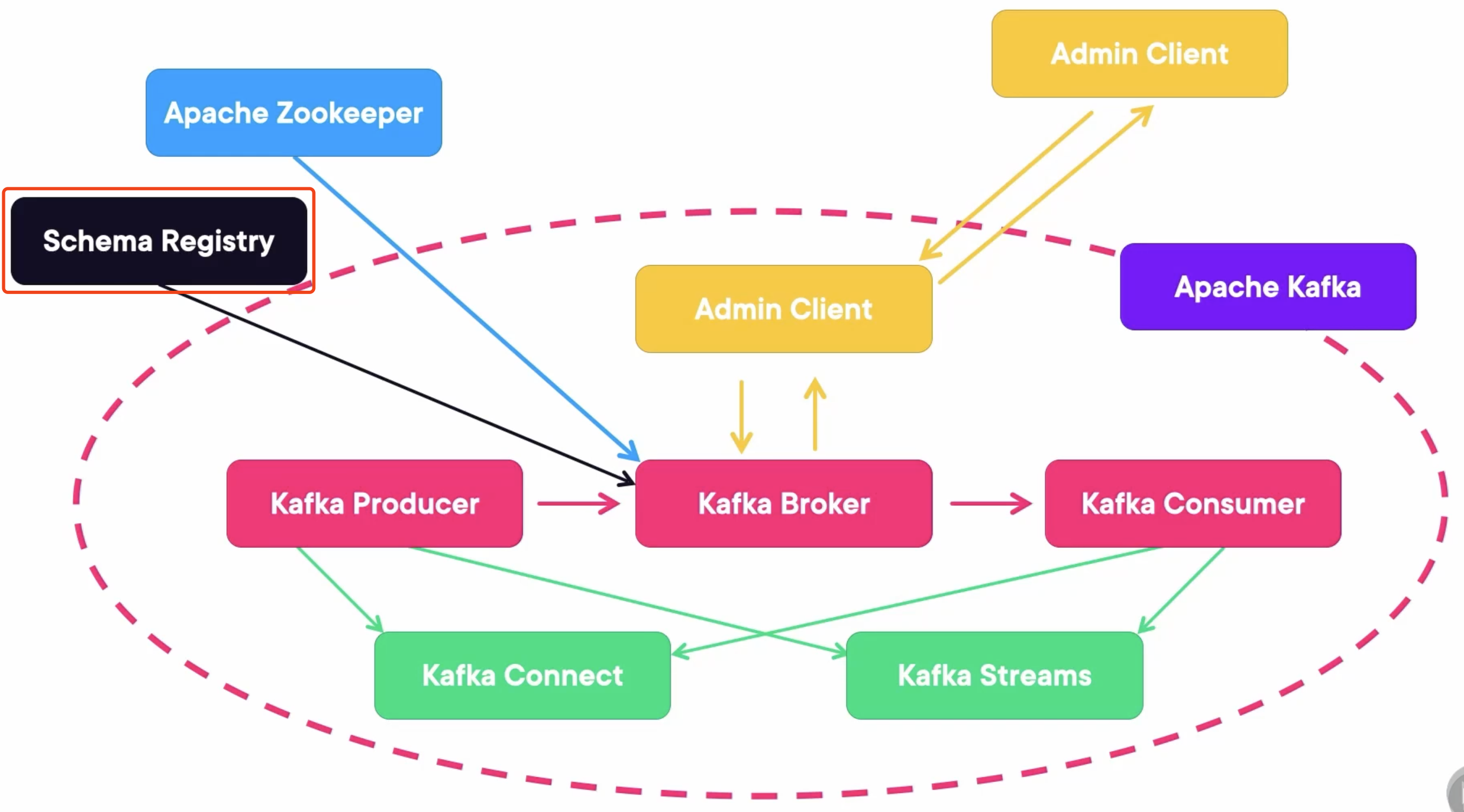

Schema Evolution and Enforcement

Schema Registry is a service provided by confluent that stores and enforces the schema on each topic in Kafka.

Apache Avro

Apache Avro is the language over which the schemas are defined.

Serialization is defined by schema.
Schemas are JSON-based.
Codegen is available at the command line.
Codegen is available with Maven, Gradle, and SBT plugins.
Supports the following languages: C, C++, Java, Perl, Python, Ruby, and PHP.

Three Modes

Generic Mode: Where you use Avro just to validate it is a valid schema, but don’t do codegen.
Specific Mode: Where we use an avsc file and the codeine capabilities to generate the code we need.
Reflection Mode: The inver of the previous mode, creates an avsc file based on a class.

Primitive Types

Avro Type	Java Type
null	null
double	double
float	float
int	int
long	long
bool	bool
string	Unicode CharSequnce
bytes	Sequence of 8-bit unsigned bytes

Complex Types

{
	"namespace": "com.xyzcorp",
	"type": "record",
	"doc": "An music album",
	"name": "Album",
	"fields": [
		{
			"name": "name",
			"type": "string"
		},
		{
			"name": "yearReleased",
			"type": [
				"int",
				"null"
			]
		}
	]
}

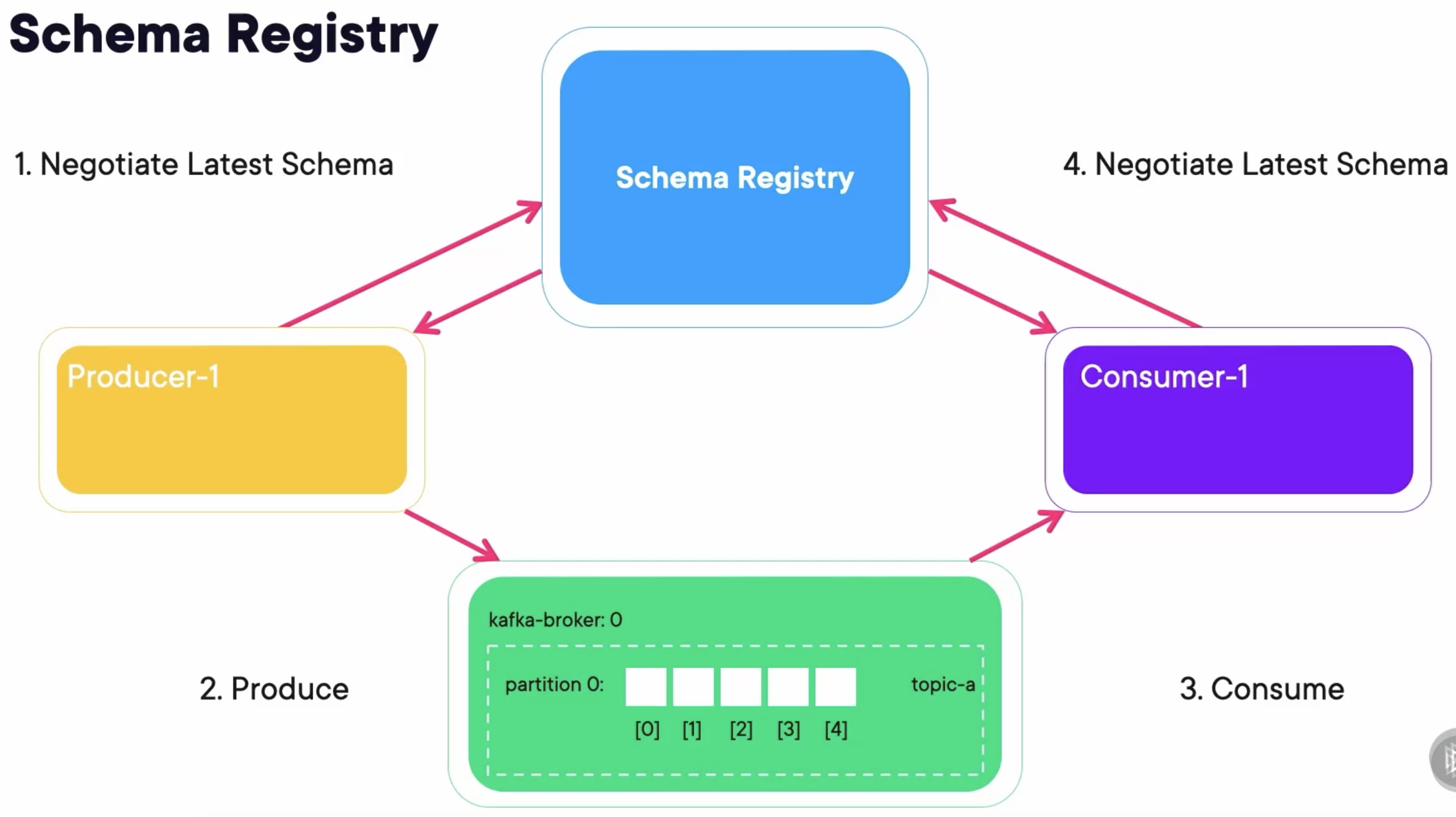

Overview

Sample Code

Producer

What makes schema registry work is the Serializer. You must add schema.registry.url and specify the location of the registry.

Properties properties = new Properties();

properties.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "http://localhost:9092");
properties.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());
properties.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, io.confluent.kafka.serializers.KafkaAvroSerializer.class.getName());
properties.put("schema.registry.url", "http://localhost:8081");

The ProducerRecord’s value is accepting an actual Java Object. We can send the object just like any other type.

Album album = new Album("Purple Rain", "Prince", 1984, Arrays.asList("Purple Rain", "Let's go crazy"));
ProducerRecord<String, Album> producerRecord = new ProducerRecord<>("music_albums", "Prince", album);
producer.send(producerRecord);

Consumer

What makes schema registry work is the Deserializer. You must add schema.registry.url and specify the location of the registry. You must add specific.avro.reader and specify that you used specific avro mode.

Properties properties = new Properties();

properties.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
properties.put(ConsumerConfig.GROUP_ID_CONFIG, "my_group");
properties.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());
properties.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, io.confluent.kafka.serializers.KafkaAvroDeserializer.class);
properties.setProperty("schema.registry.url", "http://localhost:8081");
properties.setProperty("specific.avro.reader", "true");

Receiving a Custom Object from Kafka:

while (true) {
	ConsumerRecords<String, Album> records = consumer.poll(Duration.of(500, ChronoUnit.MILLIS));
	for (ConsumerRecord<String, Album> record: records) {
		Album a = record.value();
		System.out.format("value: %s\n", a.getTitle());
		System.out.format("value: %s\n", a.getArtist());
	}
}

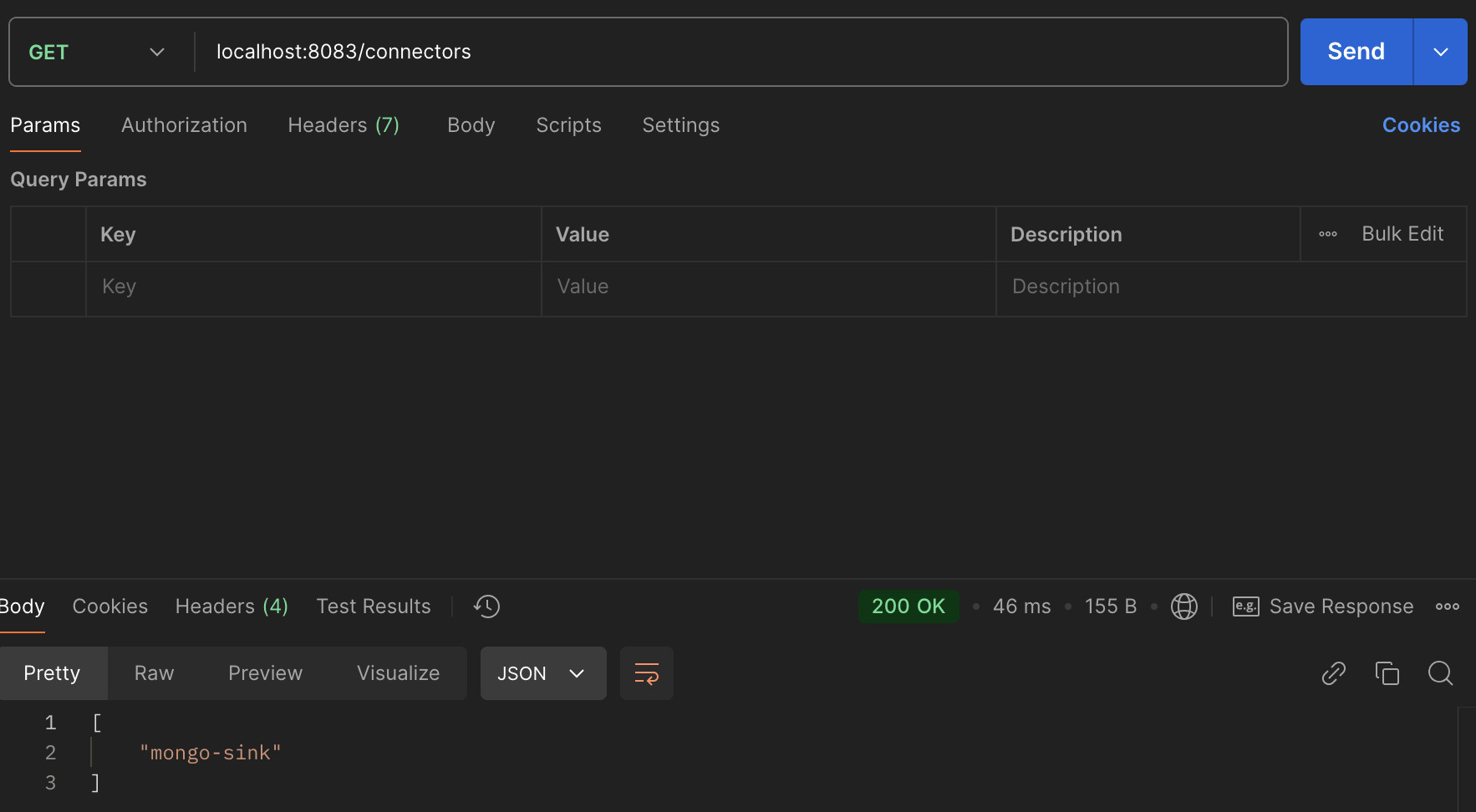

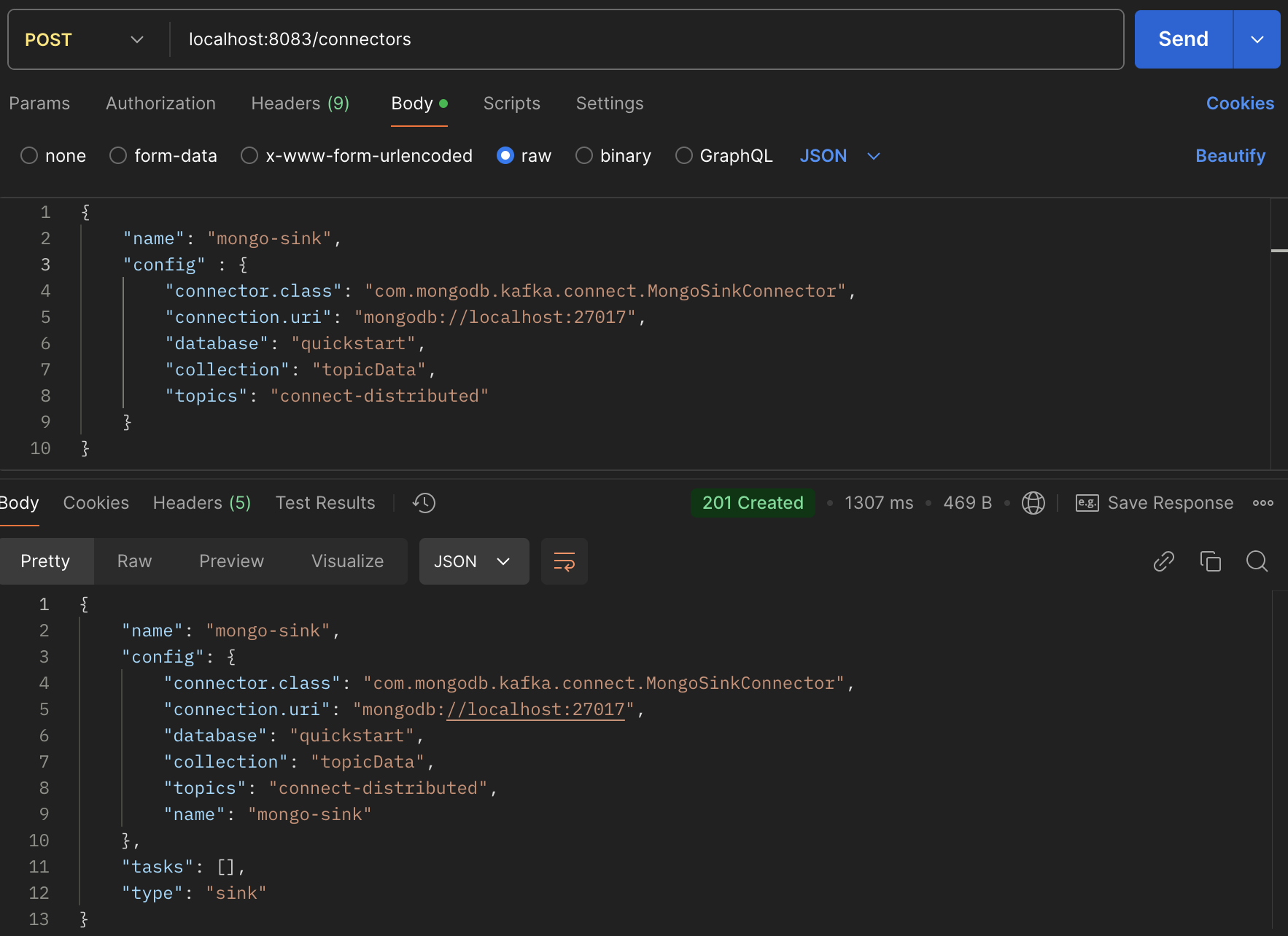

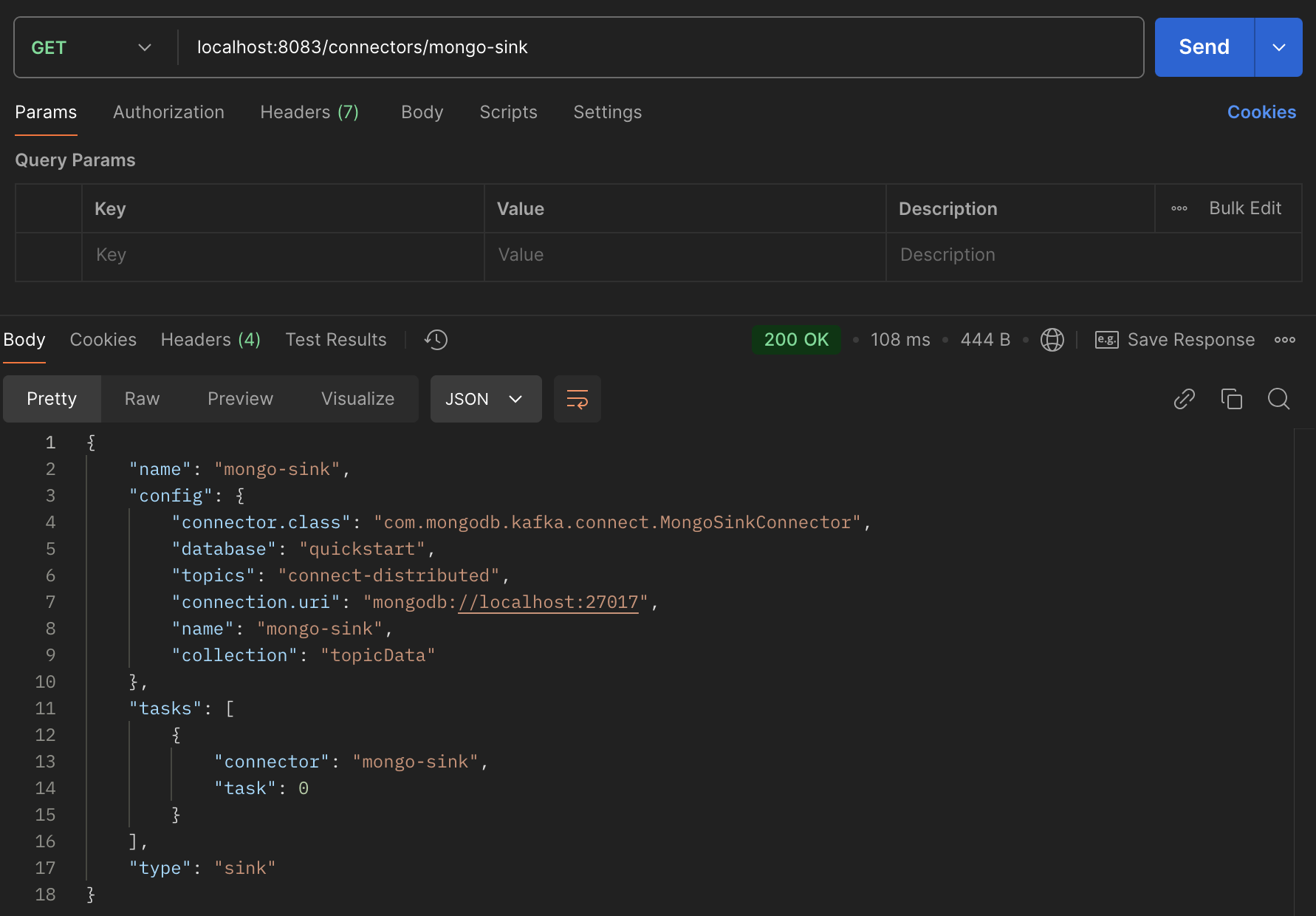

Demo: Using the MongoDB Connector with Distributed Kafka Connect to Query a Topic

Install Confluent Hub Client

Use Brew if you are using Mac:

brew tap confluentinc/homebrew-confluent-hub-client
brew install --cask confluent-hub-client

Install Kafka Connect Avro Converter

Install the Kafka Connect Avro Converter using the Confluent Hub we just installed:

confluent-hub install confluentinc/kafka-connect-avro-converter:7.5.0 --component-dir ~/Library/kafka_2.13-3.9.0/libs --worker-configs worker.properties

Install Kafka MongoDB Connector

confluent-hub install mongodb/kafka-connect-mongodb:1.11.0 --component-dir ~/Library/kafka_2.13-3.9.0/libs --worker-configs worker.properties

Downloading Some Missing Jars

Download and put some missing jars into the Kafka libs, including the failureaccess-1.0.1.jar and guava-32.1.2-jre.jar.

cp failureaccess-1.0.1.jar  ~/Library/kafka_2.13-3.9.0/libs
cp guava-32.1.2-jre.jar ~/Library/kafka_2.13-3.9.0/libs

Run Docker Containers

Create a docker-compose.yaml file containing three Zookeepers, three Kafka Brokers, a Rest Proxy, a Schema Registry, and a MongoDB.

---
version: '3'
services:
  zookeeper-1:
    image: confluentinc/cp-zookeeper:7.4.1
    hostname: zookeeper-1
    container_name: zookeeper-1
    volumes:
      - ./zookeeper-1_data:/var/lib/zookeeper/data
      - ./zookeeper-1_log:/var/lib/zookeeper/log
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000
      ZOO_MY_ID: 1
      ZOO_SERVERS: server.1=zookeeper-1:2888:3888;2181 server.2=zookeeper-2:2888:3888;2181 server.3=zookeeper-3:2888:3888;2181

  zookeeper-2:
    image: confluentinc/cp-zookeeper:7.4.1
    hostname: zookeeper-2
    container_name: zookeeper-2
    volumes:
      - ./zookeeper-2_data:/var/lib/zookeeper/data
      - ./zookeeper-2_log:/var/lib/zookeeper/log
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000
      ZOO_MY_ID: 2
      ZOO_SERVERS: server.1=zookeeper-1:2888:3888;2181 server.2=zookeeper-2:2888:3888;2181 server.3=zookeeper-3:2888:3888;2181

  zookeeper-3:
    image: confluentinc/cp-zookeeper:7.4.1
    hostname: zookeeper-3
    container_name: zookeeper-3
    volumes:
      - ./zookeeper-3_data:/var/lib/zookeeper/data
      - ./zookeeper-3_log:/var/lib/zookeeper/log
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000
      ZOO_MY_ID: 3
      ZOO_SERVERS: server.1=zookeeper-1:2888:3888;2181 server.2=zookeeper-2:2888:3888;2181 server.3=zookeeper-3:2888:3888;2181


  broker-1:
    image: confluentinc/cp-kafka:7.4.1
    hostname: broker-1
    container_name: broker-1
    volumes:
      - ./broker-1-data:/var/lib/kafka/data
    depends_on:
      - zookeeper-1
      - zookeeper-2
      - zookeeper-3
    ports:
      - 9092:9092
      - 29092:29092
    environment:
      KAFKA_BROKER_ID: 1
      KAFKA_ZOOKEEPER_CONNECT: zookeeper-1:2181
      KAFKA_ADVERTISED_LISTENERS: HOST://localhost:9092,INTERNAL://broker-1:29092
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: HOST:PLAINTEXT,INTERNAL:PLAINTEXT
      KAFKA_INTER_BROKER_LISTENER_NAME: INTERNAL
      KAFKA_SNAPSHOT_TRUST_EMPTY: true

  broker-2:
    image: confluentinc/cp-kafka:7.4.1
    hostname: broker-2
    container_name: broker-2
    volumes:
      - ./broker-2-data:/var/lib/kafka/data
    depends_on:
      - zookeeper-1
      - zookeeper-2
      - zookeeper-3
      - broker-1
    ports:
      - 9093:9093
      - 29093:29093
    environment:
      KAFKA_BROKER_ID: 2
      KAFKA_ZOOKEEPER_CONNECT: zookeeper-1:2181
      KAFKA_ADVERTISED_LISTENERS: HOST://localhost:9093,INTERNAL://broker-2:29093
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: HOST:PLAINTEXT,INTERNAL:PLAINTEXT
      KAFKA_INTER_BROKER_LISTENER_NAME: INTERNAL
      KAFKA_SNAPSHOT_TRUST_EMPTY: true

  broker-3:
    image: confluentinc/cp-kafka:7.4.1
    hostname: broker-3
    container_name: broker-3
    volumes:
      - ./broker-3-data:/var/lib/kafka/data
    depends_on:
      - zookeeper-1
      - zookeeper-2
      - zookeeper-3
      - broker-1
      - broker-2
    ports:
      - 9094:9094
      - 29094:29094
    environment:
      KAFKA_BROKER_ID: 3
      KAFKA_ZOOKEEPER_CONNECT: zookeeper-1:2181
      KAFKA_ADVERTISED_LISTENERS: HOST://localhost:9094,INTERNAL://broker-3:29094
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: HOST:PLAINTEXT,INTERNAL:PLAINTEXT
      KAFKA_INTER_BROKER_LISTENER_NAME: INTERNAL
      KAFKA_SNAPSHOT_TRUST_EMPTY: true


  rest-proxy:
    image: confluentinc/cp-kafka-rest:7.4.1
    ports:
      - "8082:8082"
    depends_on:
      - zookeeper-1
      - zookeeper-2
      - zookeeper-3
      - broker-1
      - broker-2
      - broker-3
    hostname: rest-proxy
    container_name: rest-proxy
    environment:
      KAFKA_REST_HOST_NAME: rest-proxy
      KAFKA_REST_BOOTSTRAP_SERVERS: 'broker-1:29092,broker-2:29093,broker-3:29094'
      KAFKA_REST_LISTENERS: "http://0.0.0.0:8082"

  schema-registry:
    image: confluentinc/cp-schema-registry:7.4.1
    hostname: schema-registry
    container_name: schema-registry
    depends_on:
      - rest-proxy
    ports:
      - "8081:8081"
    environment:
      SCHEMA_REGISTRY_HOST_NAME: schema-registry
      SCHEMA_REGISTRY_KAFKASTORE_BOOTSTRAP_SERVERS: 'broker-1:29092,broker-2:29093,broker-3:29094'

  mongo:
    image: mongo
    hostname: mongo
    container_name: mongo
    ports:
      - 27017:27017

Run the composed containers:

docker compose up -d

Create a Kafka Topic

Create a Kafka Topic with 4 partitions:

kafka-topics.sh --create --bootstrap-server localhost:9092 --partitions 4 --topic connect-distributed

Generate Model with Avsc File

Create an avsc file, which represents the Album record:

{
  "fields": [
    {
      "name": "name",
      "type": "string"
    },
    {
      "name": "year",
      "type": "int"
    }
  ],
  "name": "Album",
  "namespace": "com.globomantics.model",
  "type": "record"
}

Generate the model class by running the Maven plugin:

mvn generate-sources

Then, the package that is configured at the namespace in the avsc file will be created, and the Album class will be genereated in the package like this:

/**
 * Autogenerated by Avro
 *
 * DO NOT EDIT DIRECTLY
 */
package com.globomantics.model;

import org.apache.avro.generic.GenericArray;
import org.apache.avro.specific.SpecificData;
import org.apache.avro.util.Utf8;
import org.apache.avro.message.BinaryMessageEncoder;
import org.apache.avro.message.BinaryMessageDecoder;
import org.apache.avro.message.SchemaStore;

@org.apache.avro.specific.AvroGenerated
public class Album extends org.apache.avro.specific.SpecificRecordBase implements org.apache.avro.specific.SpecificRecord {
	...
}

Create Other Topics

We need to create some other necessary topics to apply the distributed mode, which are configured in the worker.properties file: kafka_connect_configs, kafka_connect_offsets, and kafka_connect_statuses.

config.storage.topic=kafka_connect_configs
cleanup.policy=compact
offset.storage.topic=kafka_connect_offsets
status.storage.topic=kafka_connect_statuses

Create these topics:

kafka-topics.sh --create --bootstrap-server localhost:9092 --topic kafka_connect_statuses --config cleanup.policy=compact

kafka-topics.sh --create --bootstrap-server localhost:9092 --topic kafka_connect_offsets --config cleanup.policy=compact

kafka-topics.sh --create --bootstrap-server localhost:9092 --topic kafka_connect_configs --config cleanup.policy=compact

Start the Kafka Connect in Distributed Mode

connect-distributed.sh worker.properties

If we see the logs like the following, then Kafka Connect is started in distributed mode:

...
[2024-12-21 21:02:37,819] INFO [Worker clientId=connect-192.168.10.106:8083, groupId=1] Finished starting connectors and tasks (org.apache.kafka.connect.runtime.distributed.DistributedHerder:2008)
[2024-12-21 21:02:37,984] INFO [Worker clientId=connect-192.168.10.106:8083, groupId=1] Session key updated (org.apache.kafka.connect.runtime.distributed.DistributedHerder:2510)

Deploy Connectors

The Kafka Connect in distributed mode offers some RESTful APIs. We can send an HTTP post request to the localhost://8083 to create a connector with request body like:

{
    "name": "mongo-sink",
    "config" : {
        "connector.class": "com.mongodb.kafka.connect.MongoSinkConnector",
        "connection.uri": "mongodb://localhost:27017",
        "database": "quickstart",
        "collection": "topicData",
        "topics": "connect-distributed"
    }
}

And we can get created connectors by the GET method:

Then, we can append the name of the connector to the url to get the details of a specific connector:

Send a Message

Create a Java class using Kafka Producer to send a messages with an Album model as value:

package com.globomantics;

import com.globomantics.model.Album;
import io.confluent.kafka.serializers.KafkaAvroSerializer;
import io.confluent.kafka.serializers.KafkaAvroSerializerConfig;
import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerConfig;
import org.apache.kafka.clients.producer.ProducerRecord;
import org.apache.kafka.common.serialization.DoubleSerializer;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.util.Properties;

public class AlbumSender {
	private static final Logger log = LoggerFactory.getLogger(AlbumSender.class);
	private static final String TOPIC = "connect-distributed";

	public static void main(String[] args) {

		Properties props = new Properties();
		props.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "http://localhost:9092,http://localhost:9093,http://localhost:9094");
		props.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, DoubleSerializer.class.getName());
		props.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, KafkaAvroSerializer.class.getName());
		props.put(KafkaAvroSerializerConfig.SCHEMA_REGISTRY_URL_CONFIG, "http://localhost:8081");
		Album album = Album.newBuilder()
				.setName("Use Your Illusion")
				.setYear(1991).build();
		KafkaProducer<Double, Album> producer = new KafkaProducer<>(props);
		double key = Math.floor(Math.random()*(50));
		ProducerRecord<Double, Album> producerRecord =
				new ProducerRecord<>(TOPIC, key, album);

		log.info("Sending message " + album + " to Kafka");

		producer.send(producerRecord, (metadata, e) -> {
			if (metadata != null) {
				System.out.println(producerRecord.key());
				System.out.println(producerRecord.value());
				System.out.println(metadata.toString());
			}
		});
		producer.flush();
		producer.close();

		log.info("Successfully produced messages to " + TOPIC + " topic");

	}
}

Check MongoDB

After running the sender class, we need to connect to the MongoDB to check that the massage is here.

# mongosh localhost:27017
Current Mongosh Log ID: 6766c45295db57d019e94969
Connecting to:          mongodb://localhost:27017/?directConnection=true&serverSelectionTimeoutMS=2000&appName=mongosh+2.3.4
Using MongoDB:          8.0.4
Using Mongosh:          2.3.4

For mongosh info see: https://www.mongodb.com/docs/mongodb-shell/
...

test> show dbs
admin       40.00 KiB
config      60.00 KiB
local       40.00 KiB
quickstart  40.00 KiB
test> use quickstart
switched to db quickstart
quickstart> db.topicData.find()
[
  {
    _id: ObjectId('6766c377e0b35c19402f4c3d'),
    name: 'Use Your Illusion',
    year: 1991
  }
]

Takeaways

Kafka Connect can come in two variants: Standalone and Distributed.
Kafka connects via worker processes where connectors get deployed as a number of tasks.
One can leverage the schema registry and AVRO to send classes through Kafka messages with much more metadata.
Thanks to the Kafka Connect that even sends those objects to another system.

ETL with Apache Kafka#

Connectors#

Standalone vs. Distributed#

Standalone#

Distributed#

Tasks Rebalancing#

Demo: Using the File Connector in a Standalone Mode#

Create Topic#

Create a Worker Properties File#

Create a Sink Properties File#

Start the Kafka Connect in Standalone Mode#

Run a Kafka Producer#

Check the Log File#

Schema Evolution and Enforcement#

Apache Avro#

Three Modes#

Primitive Types#

Complex Types#

Overview#

Sample Code#

Producer#

Consumer#

Demo: Using the MongoDB Connector with Distributed Kafka Connect to Query a Topic#

Install Confluent Hub Client#

Install Kafka Connect Avro Converter#

Install Kafka MongoDB Connector#

Downloading Some Missing Jars#

Run Docker Containers#

Create a Kafka Topic#

Generate Model with Avsc File#

Create Other Topics#

Start the Kafka Connect in Distributed Mode#

Deploy Connectors#

Send a Message#

Check MongoDB#

Takeaways#
